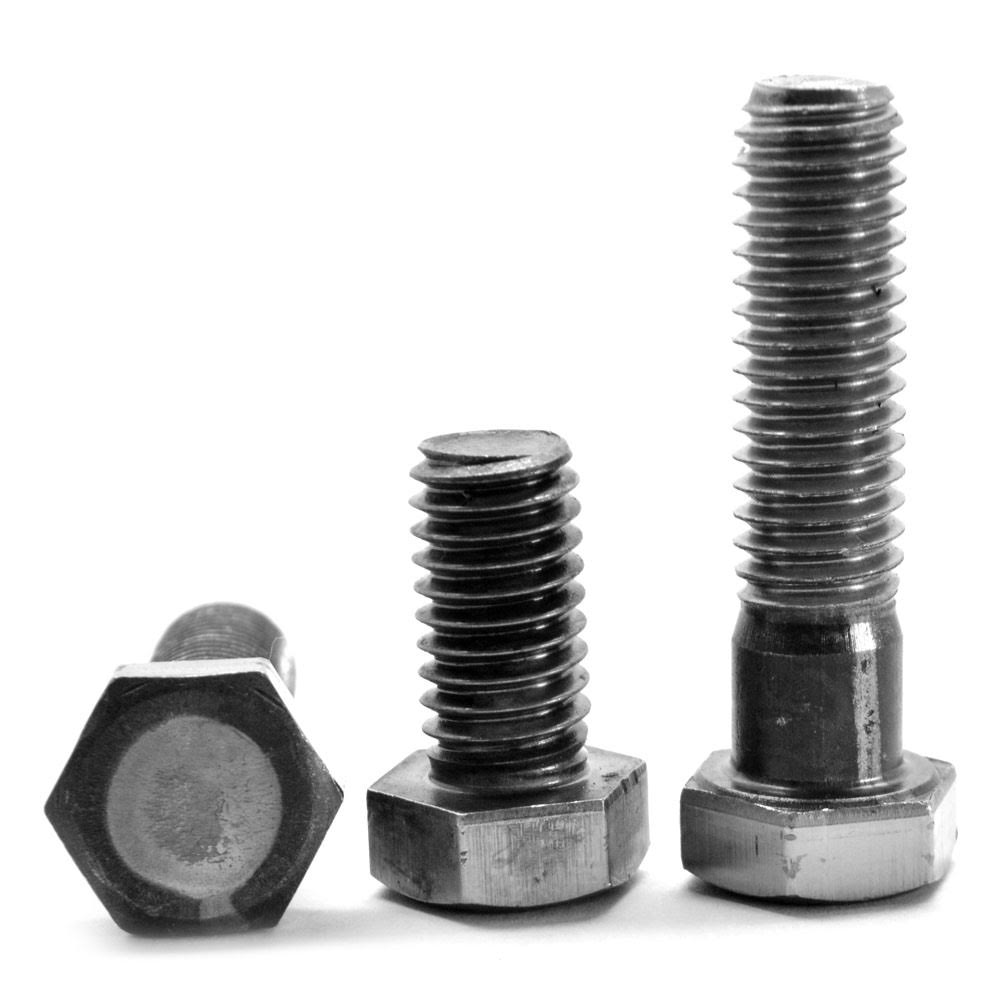

5/8x22-11 x 12x226x22THD Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Plain Finish Q994
Sale price
$23.99
Regular price $98.67
Skip to product information
Part #: 0000-130899. Buy as few as 60 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-130899 Fastener Type: Hex Bolt Size Description: 5/8"-11 x 12"6"THD Diameter/Nominal Size: 5/8" Length: 12" Wrench Size/Across Flats: 15/16" (0.922-0.938") Width Across Corners: 1.051-1.083" Head Height: 25/64" (0.378-0.403") Thread Pitch: 11 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: 6" THD System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Plain Finish (No Plating) Head Type: Hex Drive Type: External Hex Standards Met: A307 Average Piece Weight: 1.0000000 lbs. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. What is the difference between a hex cap screw and a hex bolt? A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.
5/8x22-11 x 12x226x22THD Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Plain Finish Q994
Sale price
$23.99
Regular price $98.67
Shipping calculated at checkout.
