4700 lbs Capacity Electric Winch with Synthetic Rope and Wireless Remote I188
4700 lbs Capacity Electric Winch with Synthetic Rope and Wireless Remote I188
Splendid Performance: Electric Winch Load Capacity: 4,700 lbs (2,132 kg); Power: 2 KW (2.7 HP); Gear Ratio: 180:1. The powerful motor is connected to a 3-stage planetary gear system for stronger pulling power and faster speed. Suitable for cars, boats, trucks, jeeps, modified vehicles, and multi-purpose utility trailers.
Reinforced Synthetic Rope: Cable Length: 42.6 ft / 13 m; cable diameter: 0.2 in / 6 mm. The truck winch is equipped with a strong synthetic rope. Getting stuck in the mud, car breaking down, or being stranded on the beach is now no longer a problem to worry about.
Convenient Wireless Remotes: The electric truck winch comes with one high-precision wireless remote control and one wired remote control for operating the winch. Weather and terrain will not restrict the signals between the remotes and winch.

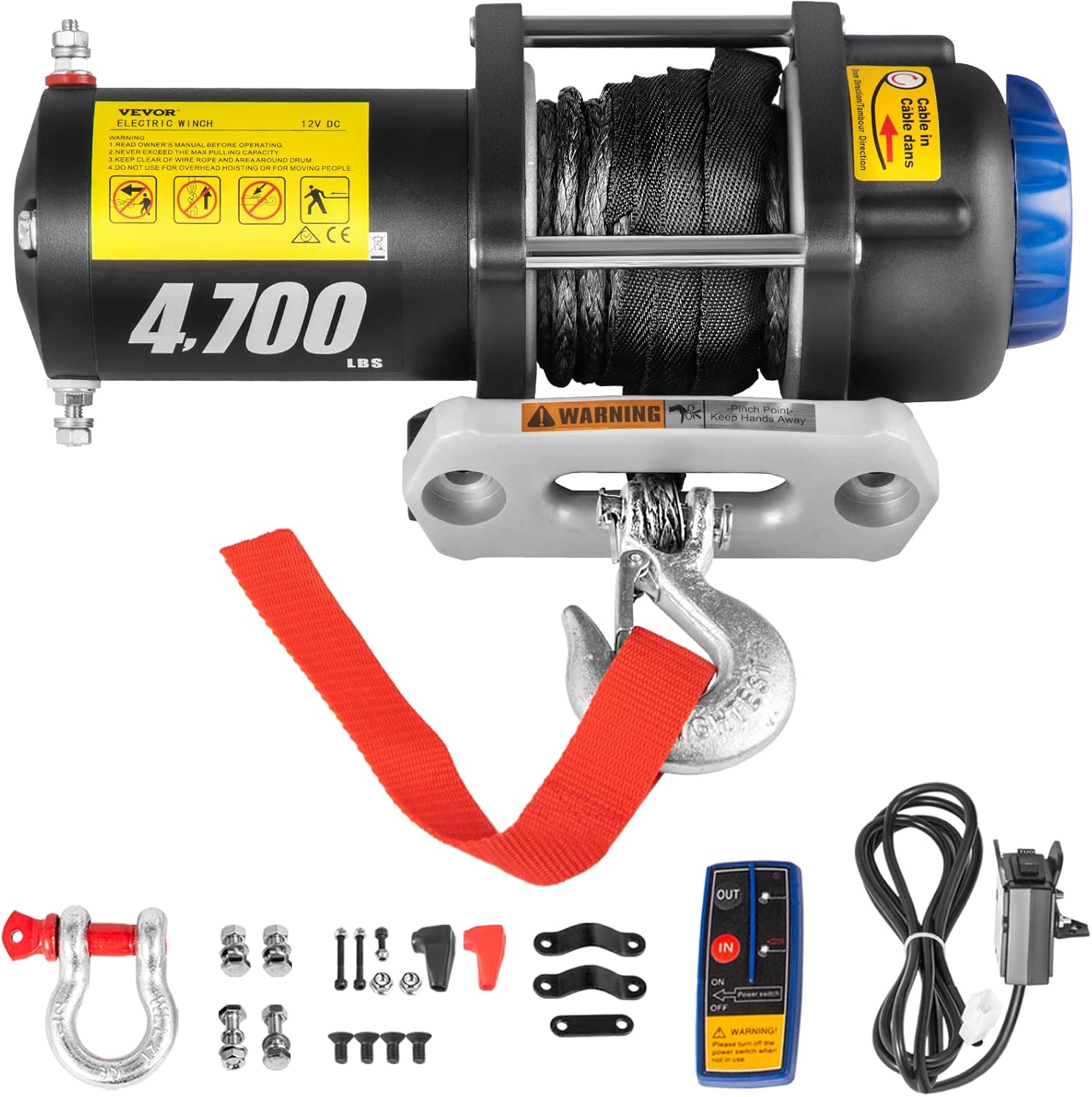

More Accessories Provided: Complete Winch Accessories: 1 x Electric Winch, 1 x Fairlead, 1 x Wireless Remote Controller, 1 x Wired Remote Controller, 1 x Mounting Plate, 1 x Hook, 1 x Shackle, 1x Set of Bolts. The towing winch is made from heavy-duty aluminum to ensure strength & durability. The IP67 waterproof control box is capable of withstanding harsh environments.

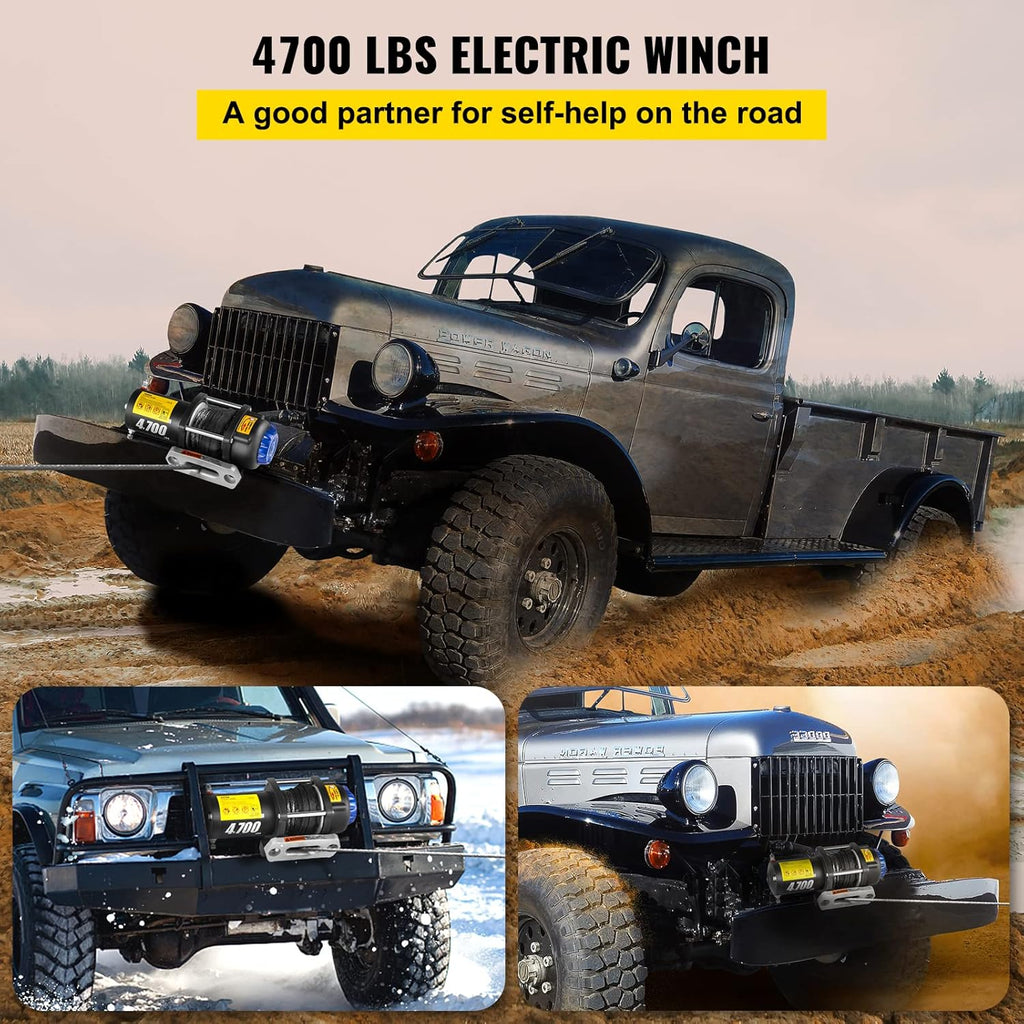

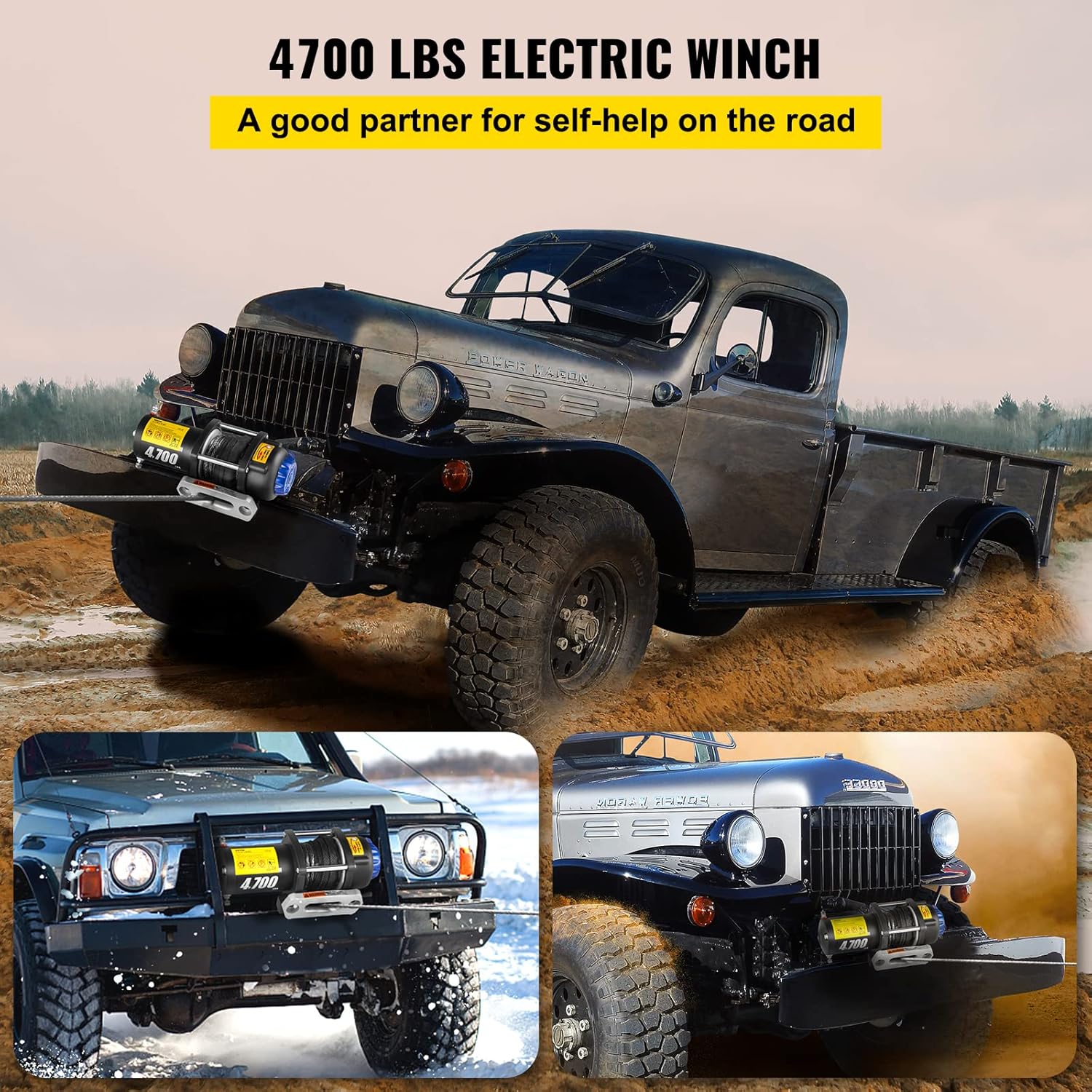

Enjoy Any Adventure: With plenty of power to assist in ATV recovery, traversing rough terrain, or loading a boat, this winch is a reliable and secure addition to any adventure. A must-have tool for any off-road enthusiasts.
key Features
4700 Lbs Loading Capacity
The electric winch features 4700 lbs loading capacity, suitable for ATV, UTV, car, boat, trucks, jeeps, modified vehicles, and utility trailers.

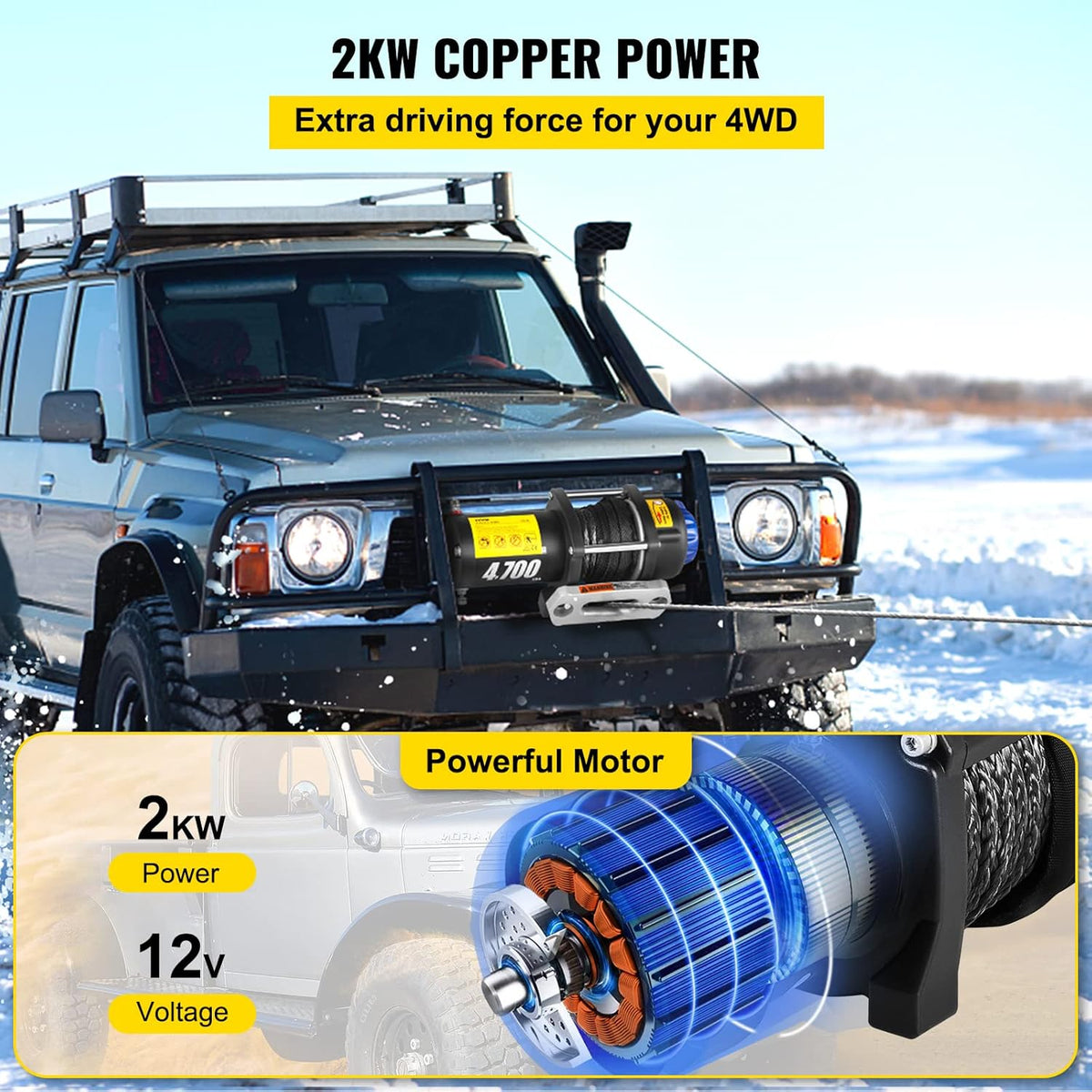

Powerful Motor & Gear
Truck winch motor: 2 kW (2.7hp), gear reduction ratio: 180:1, 3 stage planetary with sliding ring gear clutch and auto in drum braking.

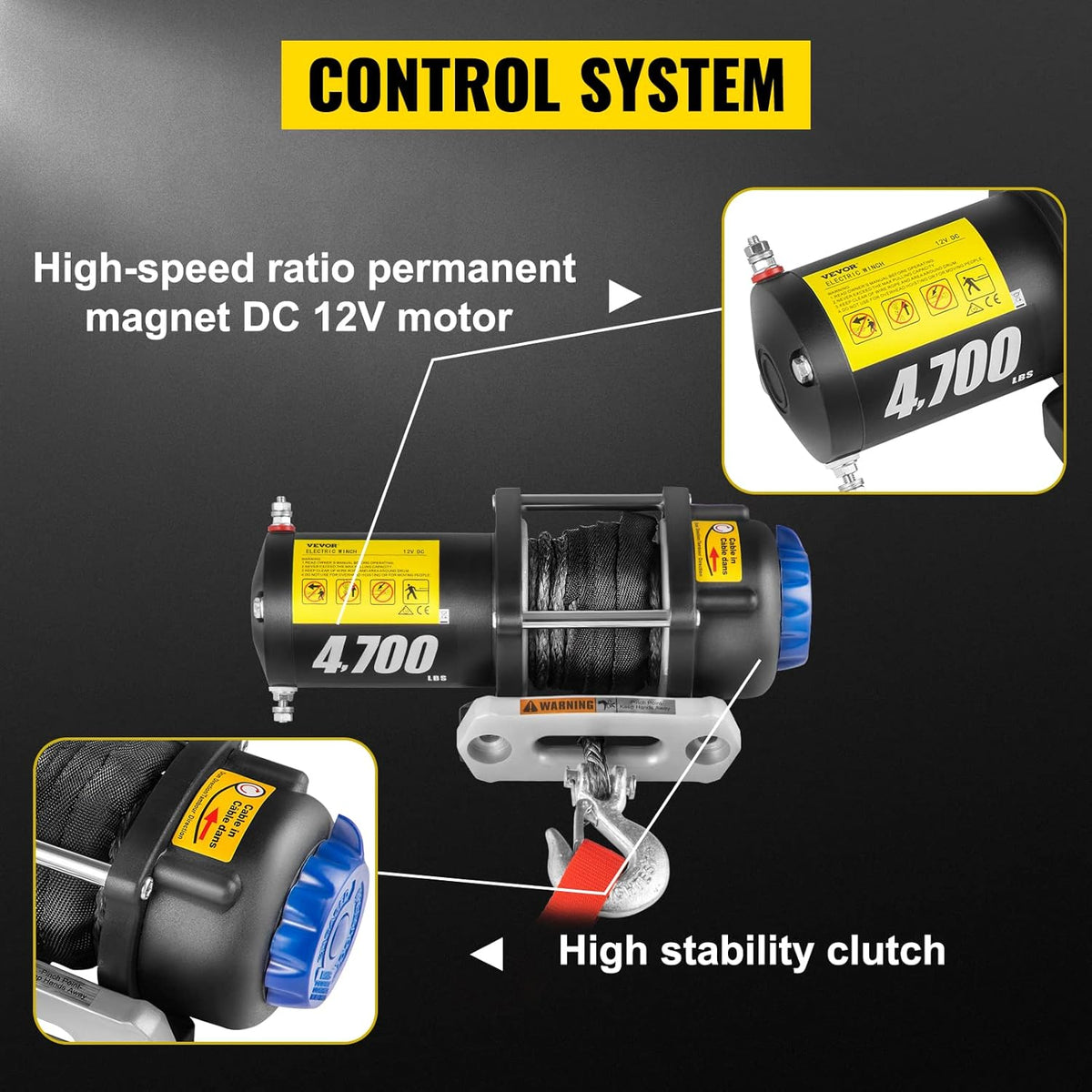

Control System
The upgraded clutch system strengthens the connection between the clutch and the gear. Combined use of a 3-stage planetary gear motor can achieve high transmission ratios.

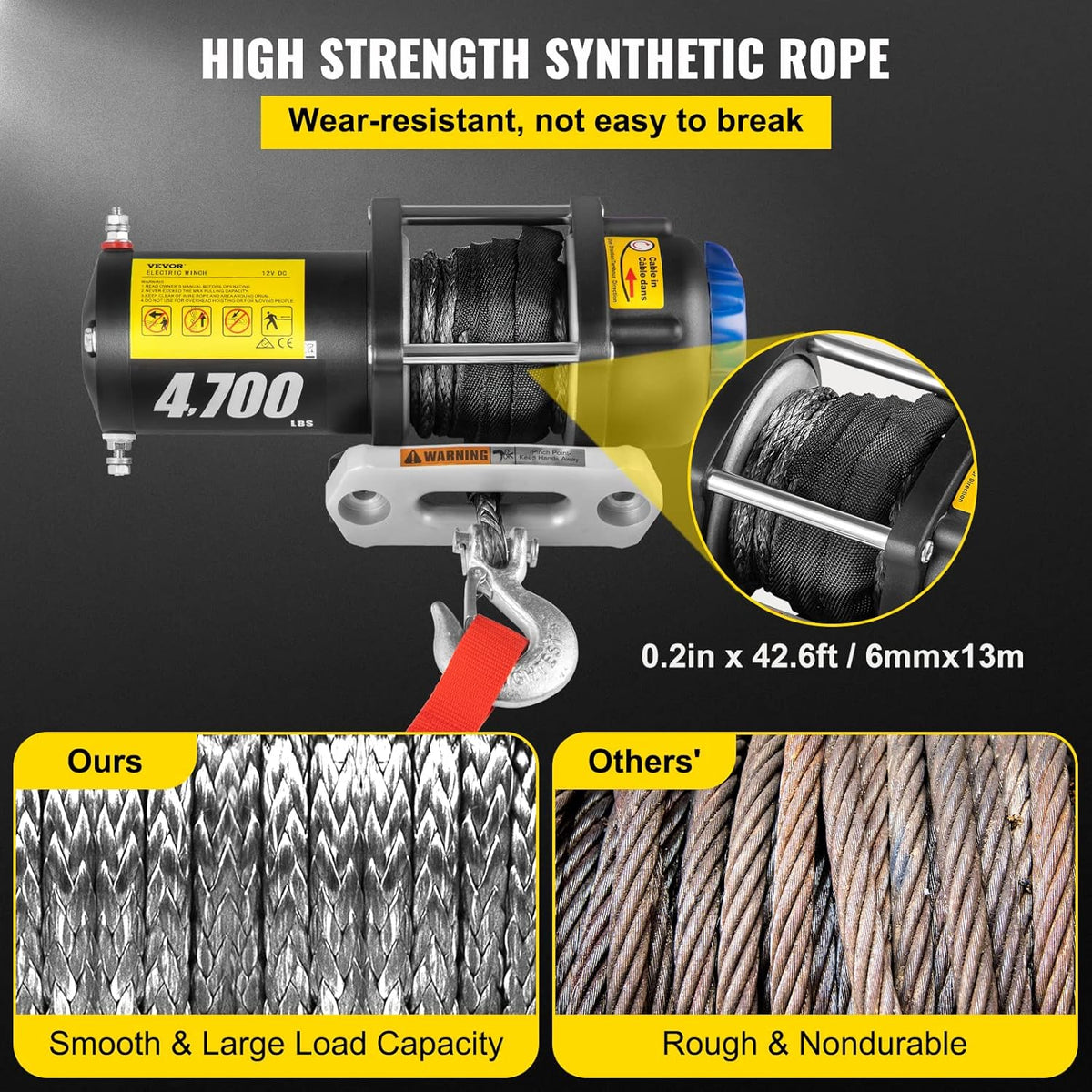

Super Tensile Synthetic Rope
The synthetic rope is lightweight but strong, with good resistance to bending fatigue, abrasion, and tough weather. Our winch is suitable for all kinds of harsh environments.
Multifunctional Control

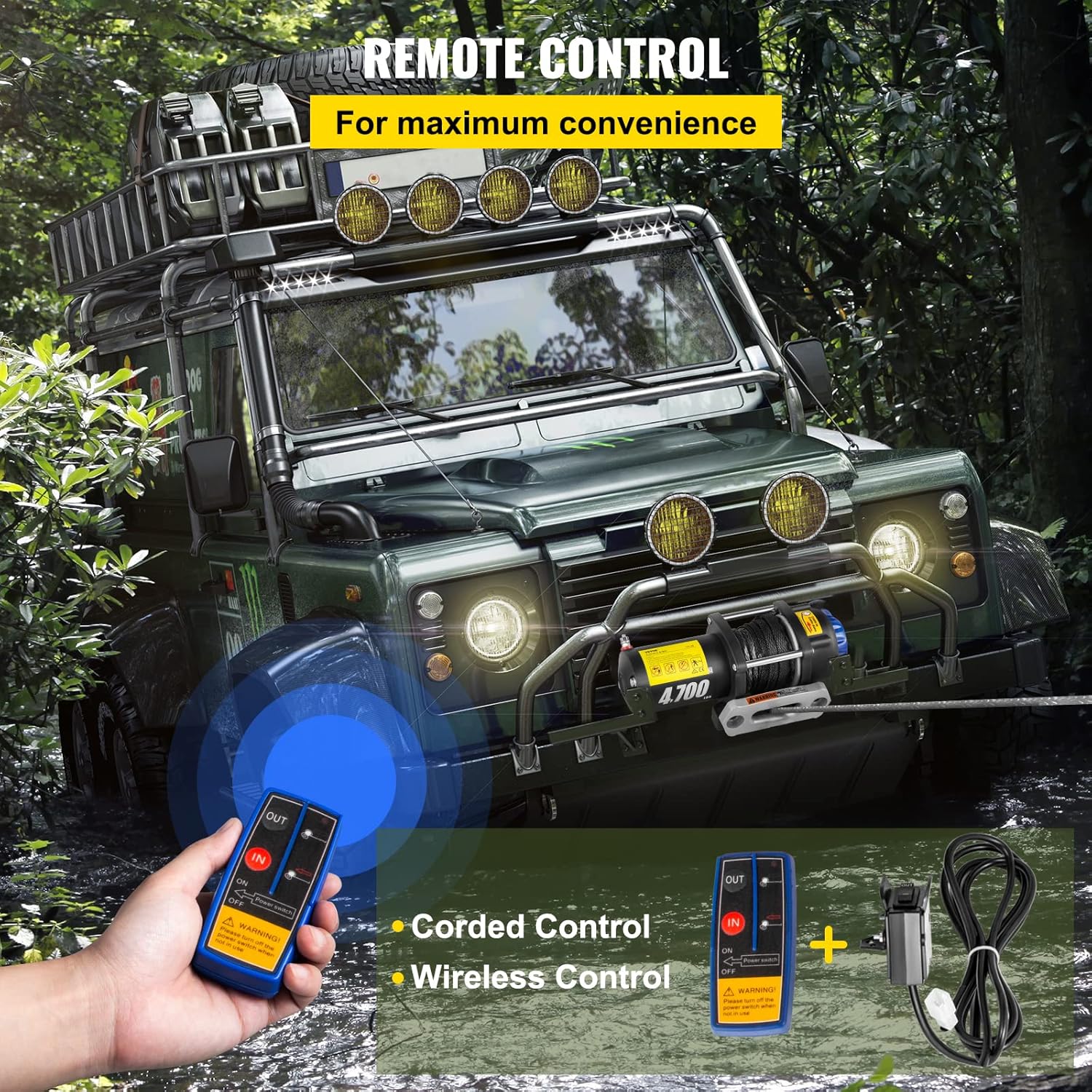

You can operate the ATV winch even at a long distance with the wireless remote control. Or you can turn to the wired remote control as you like.

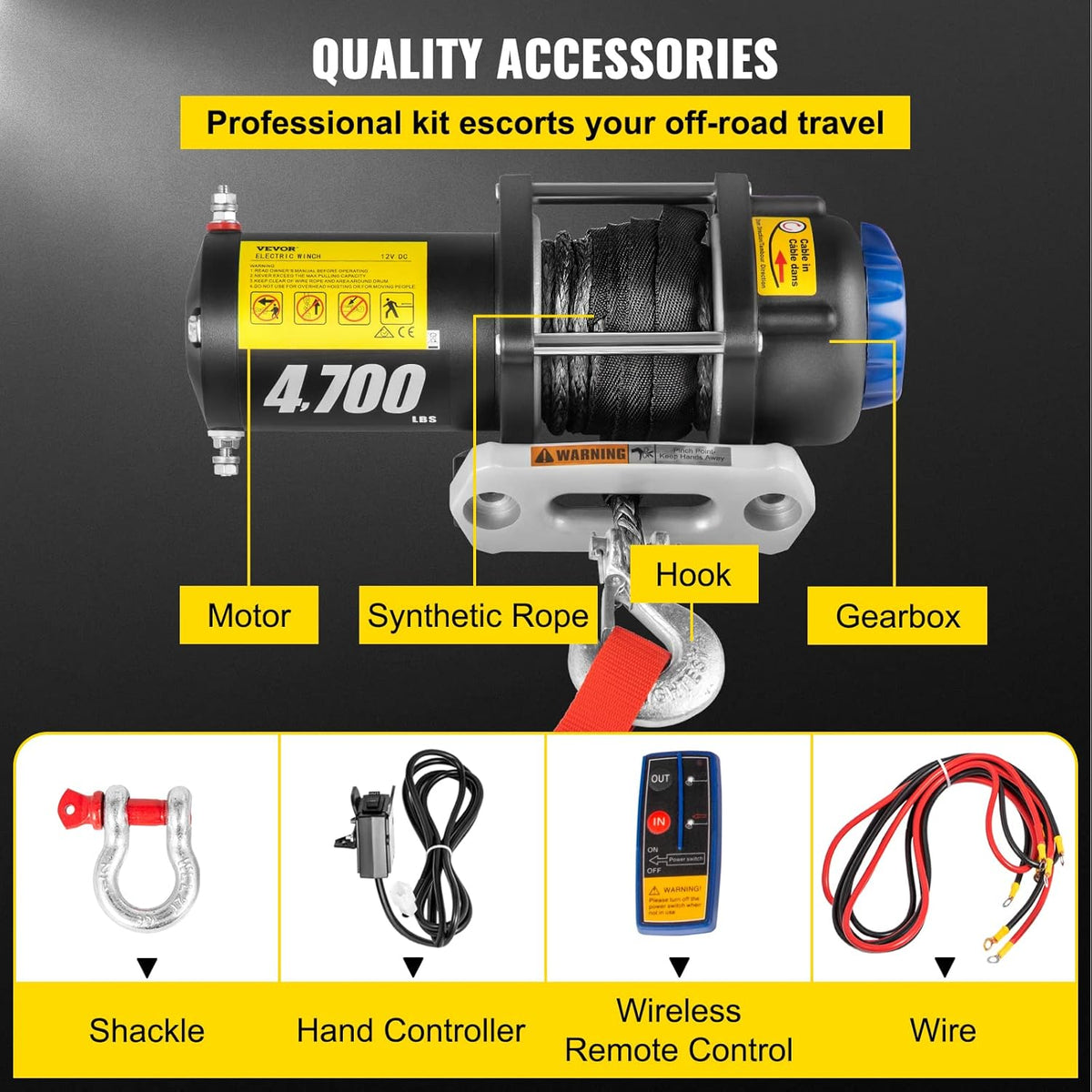

Complete Accessory Kit
All towing winches come with a thoughtful accessory kit, including remote tools, a hook, a shackle, control box, wire, and so on, ensuring excellent working performance.
Specifications
Model: FT0066
Motor Power: 2 kW, 2.7hp/12V
Pull/Lift Capacity: 4,700 lbs (2,132 kg)
Rope Material: Synthetic Rope
Rope Diameter: 0.2' (6 mm)
Rope Length: 42.6' (13 m)
Waterproof Grade: IP67
Gear Train: 3 Stage Planetary Gear
Gear Ratio: 180:1
Free Spooling Clutch: Sliding Ring Gear
Braking Action: Automatic in the Drum
Fairlead: 4-way Roller
Duty Cycle: Intermittent
Full Load Line Speed: 1.5 m/min (4.9 ft/min)
No-load Line Speed: 5 m/min (16.4ft/min)
Bolt Pattern: 3.0x4.9 in (76x124 mm)
Drum Size: 1.9x3.1 in (50.2x78 mm)
Remote Length: 65.6 ft (20 m)

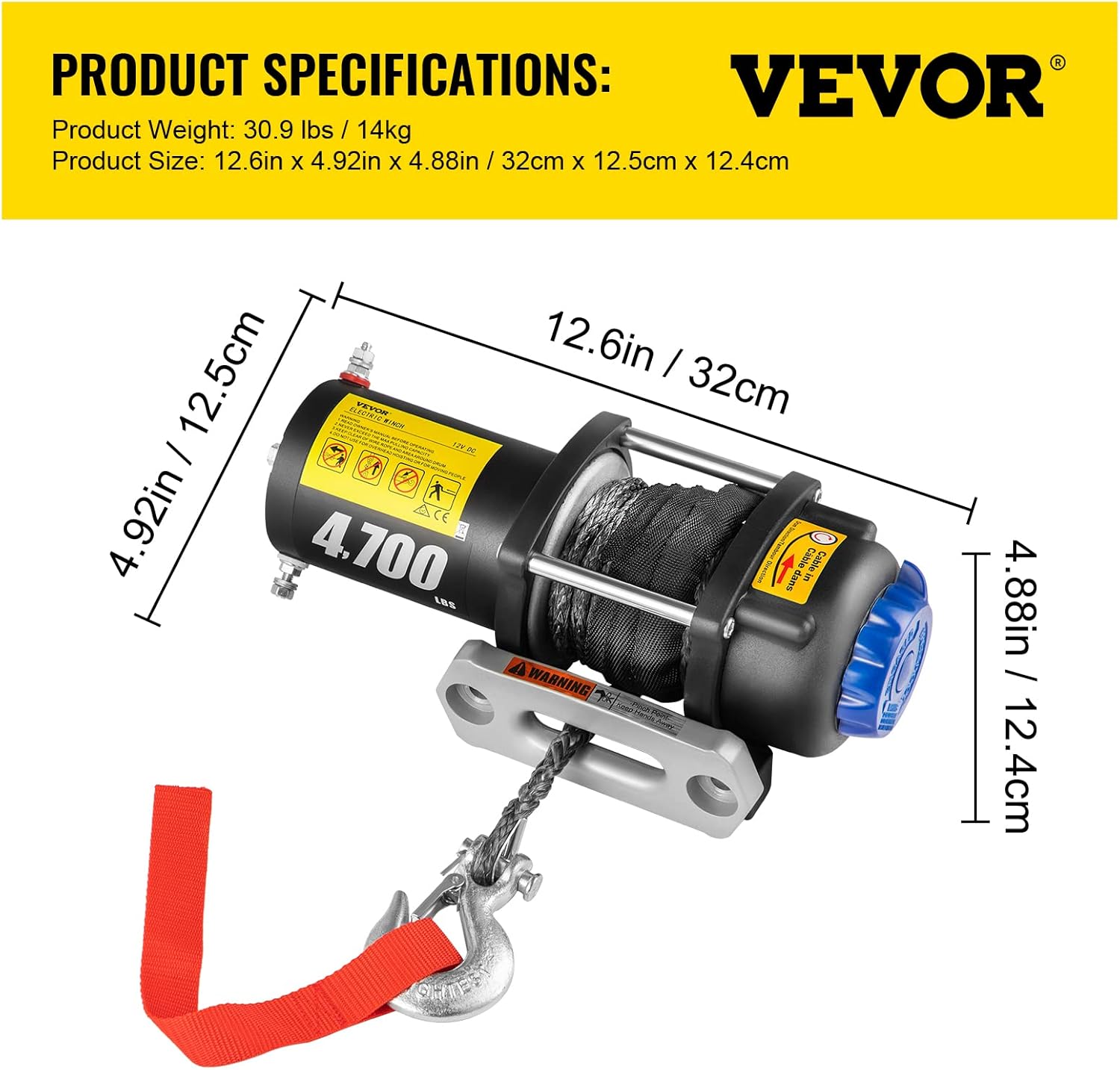

Product Dimensions: 12.6x4.92x4.88 in (32x12.5x12.4 cm)
Product Weight: 30.9 lbs (14 kg)
